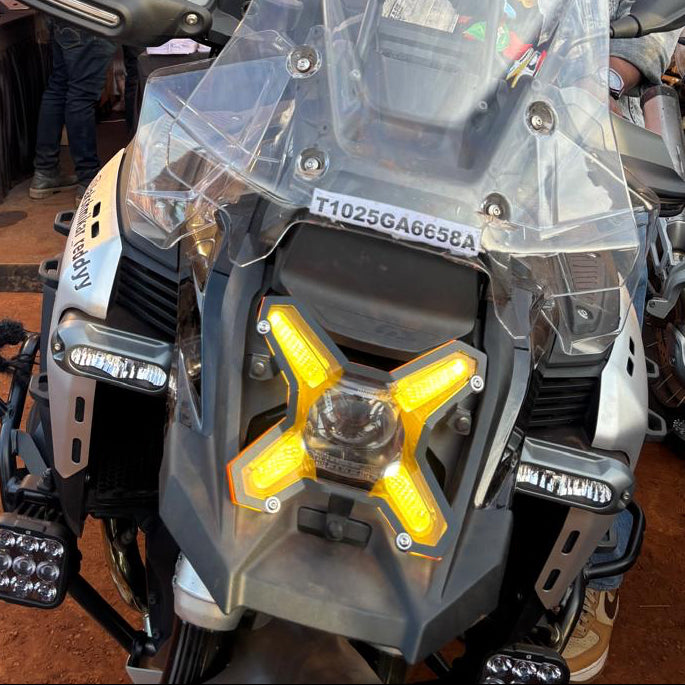

BMW R 1300 GS / GSA Headlight Protector Explained

Precision Protection for an Integrated LED System

Modern BMW GS motorcycles use a fully integrated LED headlight unit that is both technologically advanced and expensive to replace.

On the BMW R 1300 GS and R 1300 GSA, the headlight is:

• Structurally integrated into the front assembly

• Exposed to direct stone impact

• Not protected by any OEM guard

A single stone at highway speed can crack the lens.
No crash required.

This is exactly the failure the Machina Headlight Protector is designed to prevent.

What Makes the Machina Headlight Protector Different?

Unlike simple clip-on shields or generic mesh guards, this system is a structured, multi-point mounted protection assembly engineered specifically for the R 1300 platform.

From the fitting manual

bmw 1300 GSA Head light protect…

, the system consists of:

• Headlight guard assembly

• Right-side bracket

• Left-side bracket

• Front bracket

• M5 hardware

• Snaplock coupling system

• Thread locking fluid

This confirms:

It is not a stick-on shield.
It is a properly mounted, bracket-supported protection system.

Material & Construction

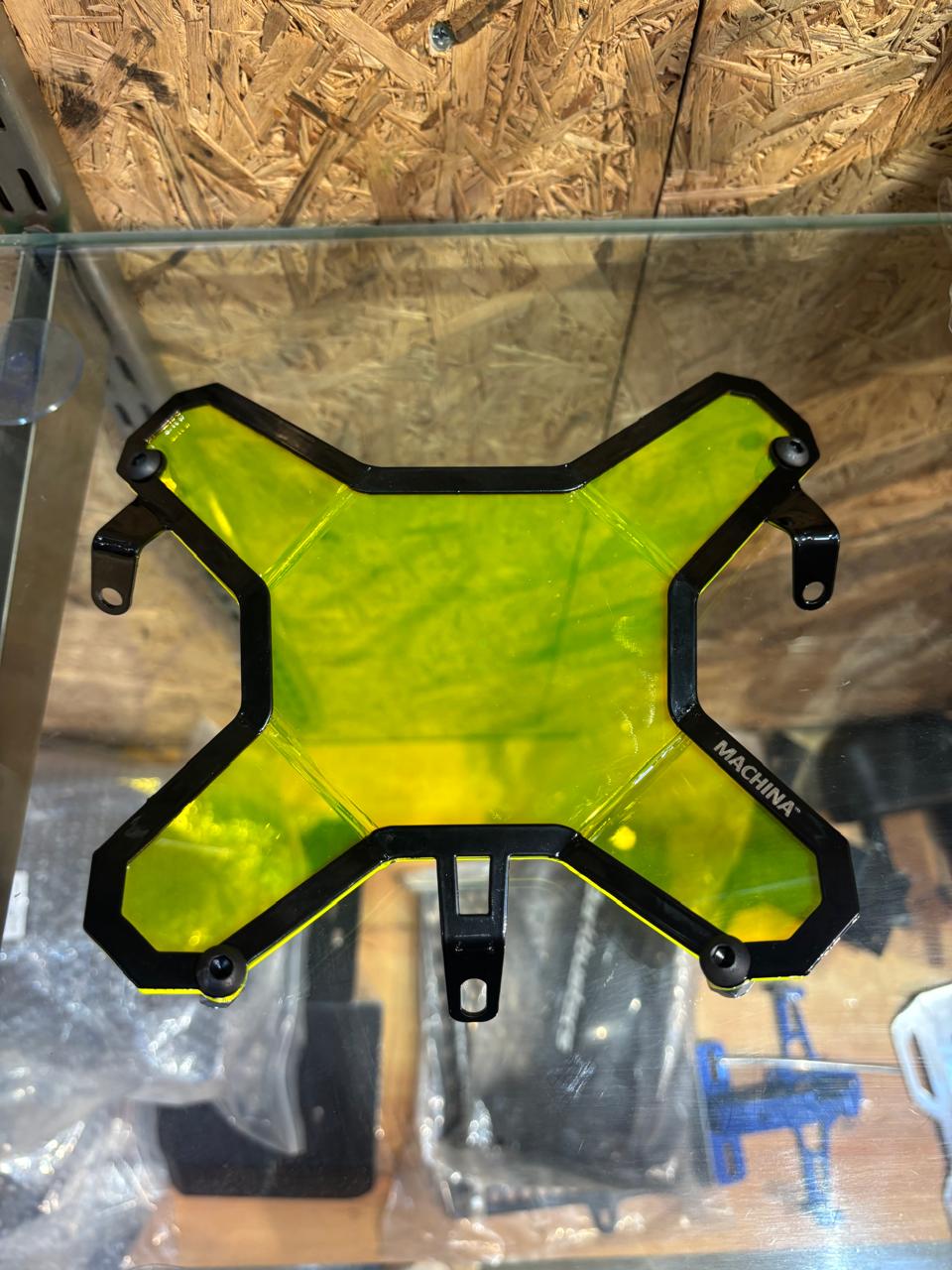

Lens Material:

• High-quality polycarbonate

• 100% clear optical surface

• No visual distortion

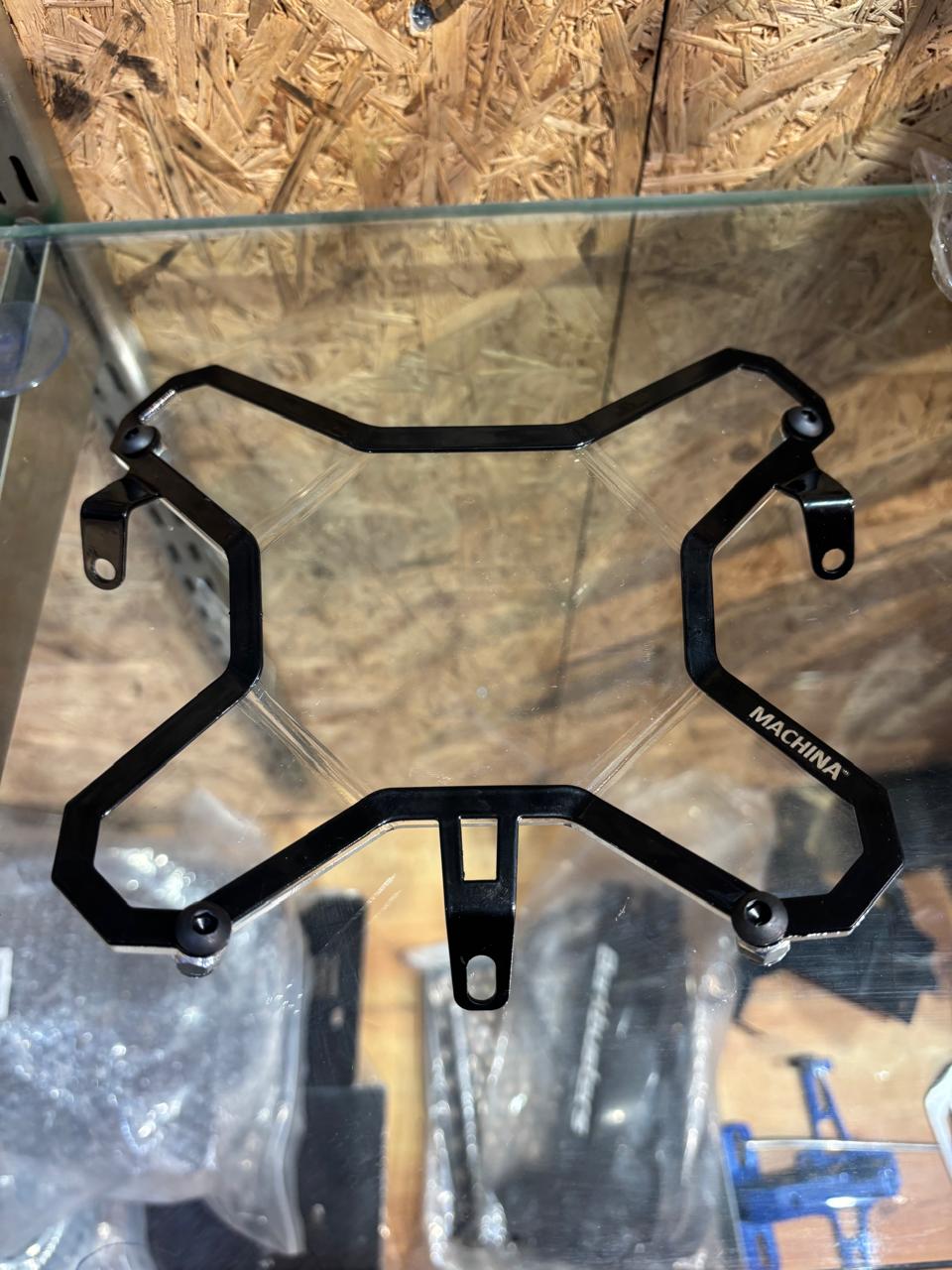

Frame Material:

• Stainless steel (SS304)

• 2 mm thickness

• Laser cut and bent

Finish:

• Powder coated frame

Why this matters:

Polycarbonate provides:

• Impact resistance (far superior to acrylic)

• Optical clarity

• Heat resistance

The stainless steel frame:

• Absorbs load before the lens

• Prevents flex-induced cracking

• Maintains structural rigidity

Mounting System – Why It’s Important

From the installation diagrams (pages 2–4 in the fitting guide)

bmw 1300 GSA Head light protect…

:

• Uses three mounting points

• Mounts to the fairing subframe

• Utilizes OEM bolt locations

• Torque reference shown at 3.5 Nm (Original BMW)

Key insight:

This is not mounted to fragile plastics.
It anchors into structural mounting points.

This prevents:

• Vibration

• Rattling

• Optical shake

• Mount fatigue over time

Quick-Release & Service Logic

The design includes:

• Snaplock coupling

• Easy removal by pulling from clamp points

• Full hardware kit included

This allows:

• Easy cleaning of the headlight

• Quick removal before deep off-road riding

• Maintenance without disassembly of the fairing

Real-World Failure Mode It Solves

Headlight replacement on modern GS models:

• Is expensive

• Requires sourcing

• May cause ride cancellation during travel

This protector prevents:

A small stone from becoming a trip-ending problem.

Compatibility & Fitment

Confirmed earlier:

• Compatible with OEM windscreen

• Compatible with OEM radar / adaptive headlight system

• Compatible with auxiliary light mounts

• No cutting or drilling required

• Installation time approx. 20 minutes

Engineering Philosophy

This product follows Machina’s core principle:

Protect the bike without altering how it functions.

It:

• Does not block airflow

• Does not distort beam pattern

• Does not interfere with electronics

• Does not add unnecessary bulk

Protection is structural, not decorative.
