Machina Skid Plate — Kawasaki Versys 1000 (2012–2024)
MACHINA

Machina Skid Plate — Kawasaki Versys 1000 (2012–2024)

SKU: MA-SPV-1000

Rs. 18,999.00
Only 4 left
Model-Specific Fit
100% Genuine Products
Engineered for Performance

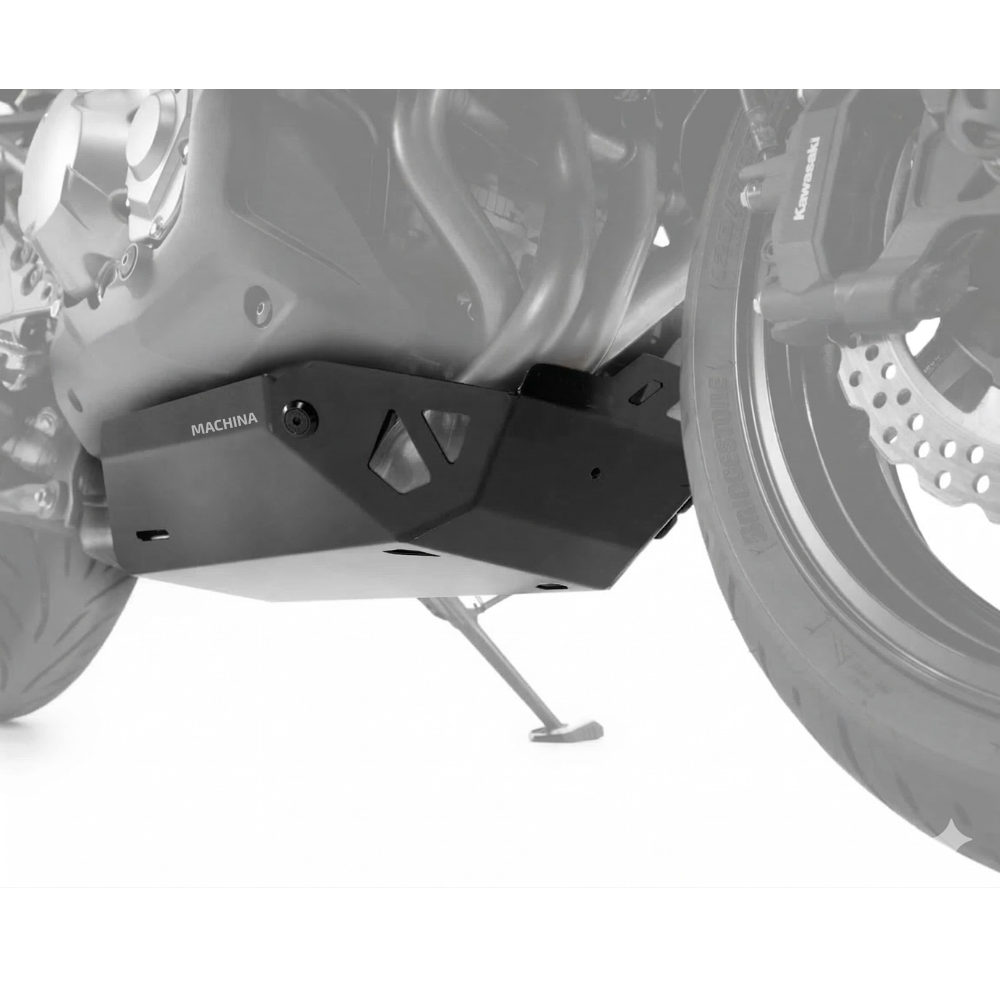

The Machina skid plate for the Kawasaki Versys 1000 protects the exposed forward components — oil filter, front exhaust headers, and oil pan — from road debris and the occasional unexpected obstacle. Built from 3mm aluminium, it mounts to the frame across four anchor points: two front struts and two rear brackets, with the OEM side plastics retained, loosened and refitted during install rather than discarded.

Where it differs from heavier alternatives is the rear-right anchor: the Machina plate uses a simpler single-side mount instead of a long bolt passed all the way through the frame. The result is easier installation and simpler future servicing. Rubber isolators at the mounts damp the inline-four's vibration buzz instead of amplifying it, preventing the rattle that is the most common complaint with rigidly-bolted plates on this engine.

Compatible with Machina Versys 1000 crash bars. Bolt-on with no drilling or permanent modifications, approximately 20 minutes. Designed and tested on Indian roads by MACHINA.

Specifications

Specification Detail
Material Aluminium
Thickness 3mm
Mounting Frame-mounted — 4 points (2 front struts + 2 rear brackets)
Rear-right anchor Single-side mount — no through-frame bolt
OEM plastics Retained — loosened and refitted during install
Coverage Oil filter, front exhaust headers, oil pan
Vibration isolation Rubber isolators at mounts
Crash-bar compatibility Machina Versys 1000 crash bars
Fitment Kawasaki Versys 1000 (2012–2024)

Bike Compatibility

Model Year Fits
Kawasaki Versys 1000 (Standard / SE / Grand Tourer) 2012–2024 Yes
Kawasaki Versys 650 All No — different platform

This product doesn't have any reviews yet

Be the first to share your experience!
Machina Skid Plate — Kawasa...
Rs. 18,999.00
see what your fellow riders has to say about our products.
Fitment

Questions riders ask about this part

Will the Machina skid plate fit my Kawasaki Versys 1000 (2012–2024)?

It is made for the Kawasaki Versys 1000 from 2012 to 2024. If you have other aftermarket parts fitted nearby, or you're not sure of your model year, send Machina a photo on WhatsApp before ordering and we'll confirm fitment.

What is the Machina skid plate for the Kawasaki Versys 1000 made of?

3 mm aluminium. Aluminium is strong for its weight and does not rust, so it copes with rain, mud and road spray.

How do I install the Machina skid plate on my Kawasaki Versys 1000?

It bolts to the Kawasaki Versys 1000's mounting points under the engine with basic hand tools. Fit all bolts loosely first, line the plate up, then tighten evenly. Any mechanic can fit it if you'd rather not do it yourself.

Is the Machina skid plate suitable for riding the Kawasaki Versys 1000 in India?

Yes. Tall speed breakers, potholes, flying stones and broken ghat roads are exactly what a skid plate is for. It keeps the sump and lower engine of your Kawasaki Versys 1000 safe from hits that could crack a casing and leave you stranded far from a service centre.

Can I still change the oil with the Machina skid plate fitted to my Kawasaki Versys 1000?

Check drain-plug and filter access when you first fit the plate. If access is tight on your model, the plate comes off with its mounting bolts in a few minutes for servicing.
